50.4V 80Ah Lifepo4 36V 48V 72V 100Ah 200Ah Lithium Ion Golf Cart Battery Pack With Bms
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Quick Details
| Place of Origin: | Guangdong, China | Brand Name: | LINKAGE |
| Model Number: | LKG-50.4V-80Ah | Battery Type: | LiFePO4, LiFePO4 |
| Battery Specifications: | 14S16P/50.4V/80Ah | Cells: | NMC 20Ah |
| Battery Size: | L522xW238xH218mm or Customize | Cycles: | 3000 times |
| Connector: | Anderson Connectors | Battery Management System: | Customized |
| Weight: | 35Kg | Warranty: | 18 months |
| Application: | Tourist Car,Golf Cart,Forklift Airport Shuttle etc. |
Packaging & Delivery
Product Detail
Product Paramenters
Battery Specifications | 14S16P/50.4V/80Ah |
Nominal Voltage | 50.4V |
Nominal Capacity | 80Ah |
Cells | NMC 20Ah |
Battery Weight | 35Kg |
Product Size | L522xW238xH218mm or Customize |
Standard Charge Current | 10-50A |
Max. Charge Current | 50A |
Battery management System (BMS) | Customized |
Continuous Discharge Current | 100A |
Peak Discharge Current | 150A |
Full Charged Voltage | 58.8V(4.2V per cell) |
Charge Cut-off Voltage | 60V (4.25V per cell) |
Discharge Cut-off Voltage | 42V (3.0V per cell) |
Charging Temperature | 0～45℃ |
Discharge Temperature | -20～55℃ |
Connector | Anderson Connectors |
Storage Temperature | Recommended To Store 20 ± 5°C For Long Term Storage |
Cycle Life | 2000 Times (80% of initial capacity at 0.2C rate, IEC Standard) |
OEM/ODM | Accepatable |
Application | Tourist Car,Golf Cart,Forklift,AGV Car, Airport Shuttle,Sonic Patrol Vehicle etc. |

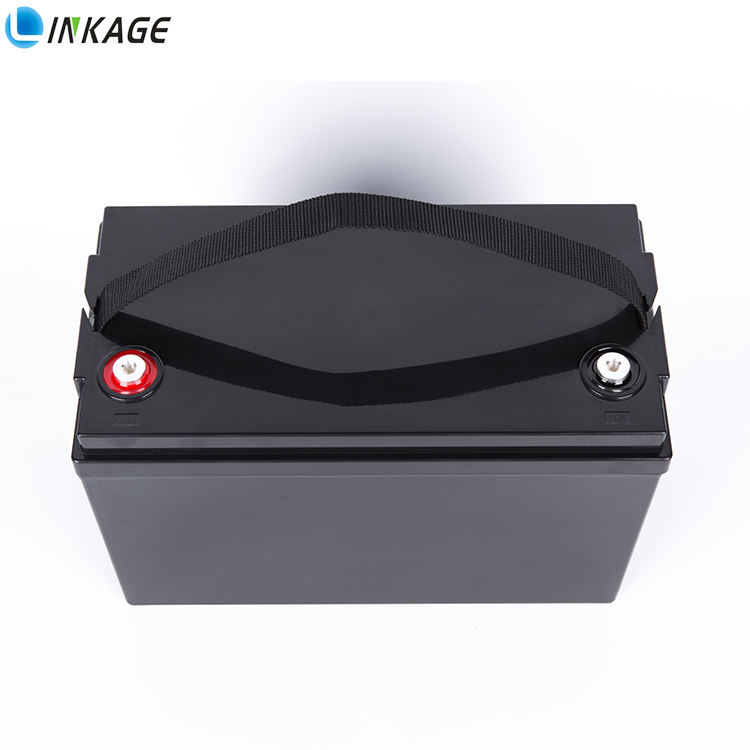

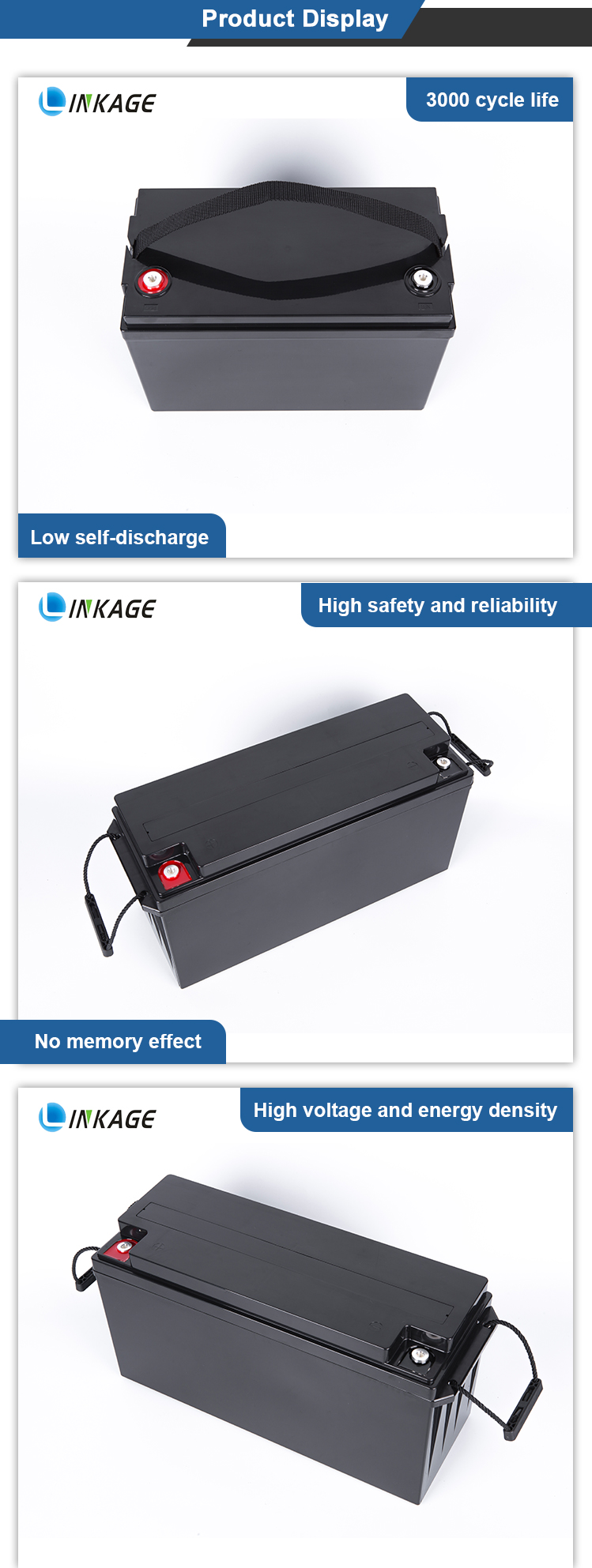

Products Display

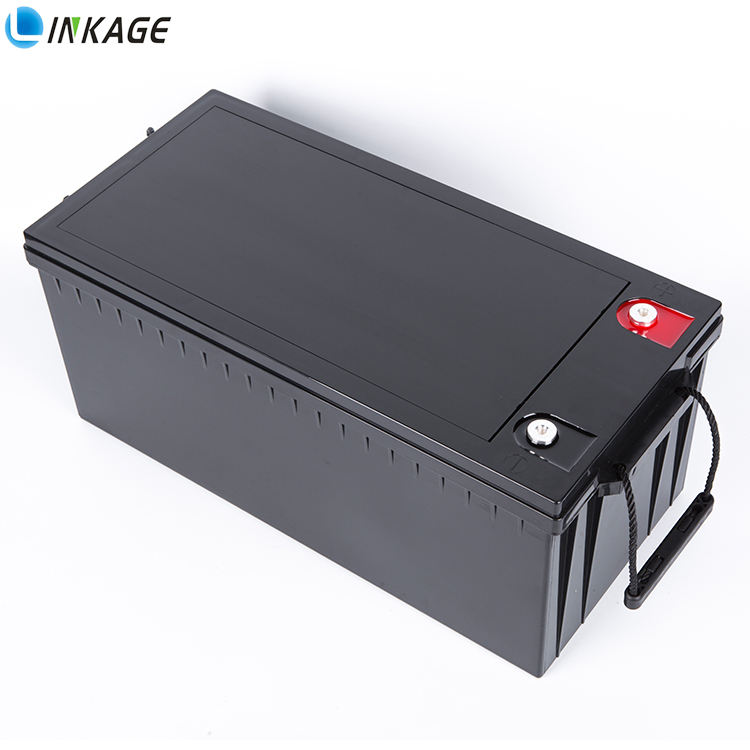

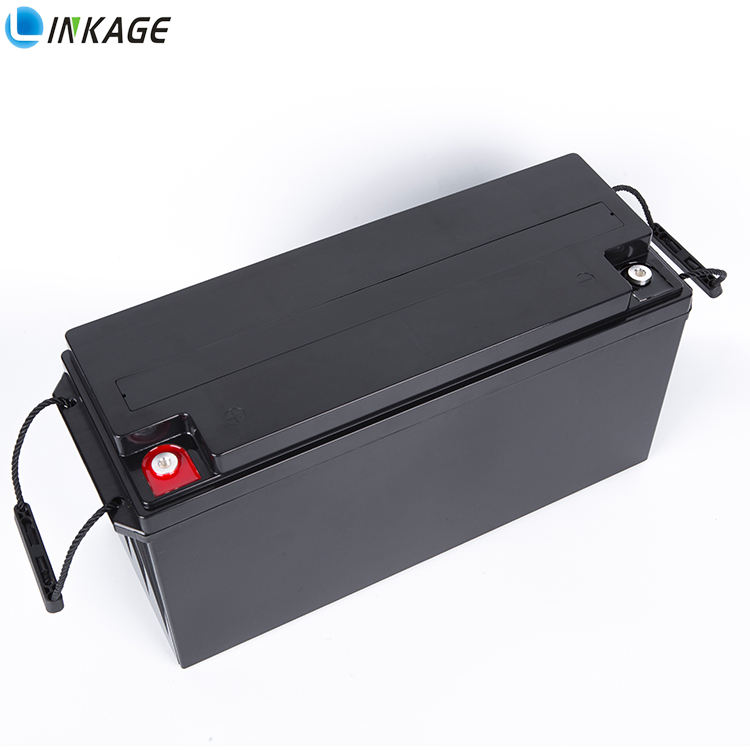

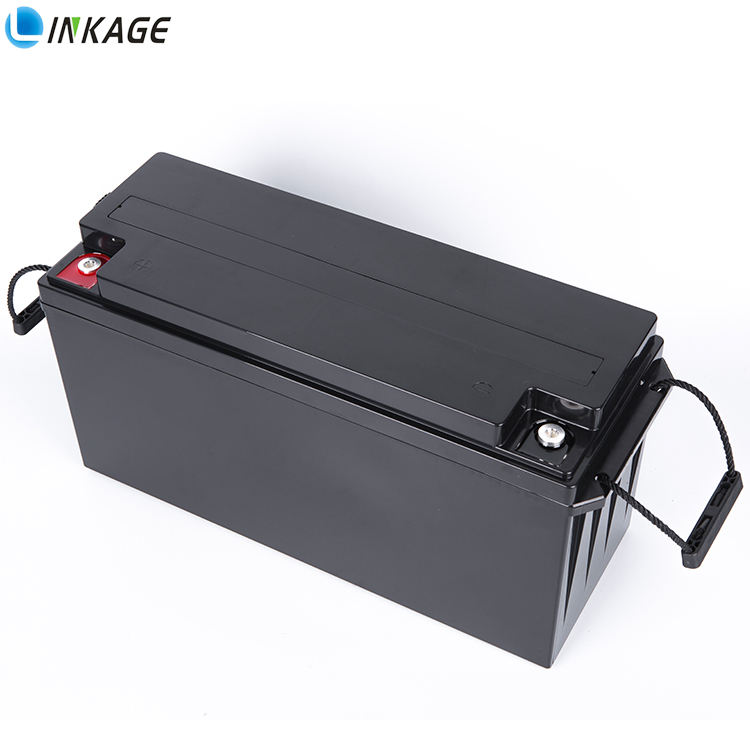

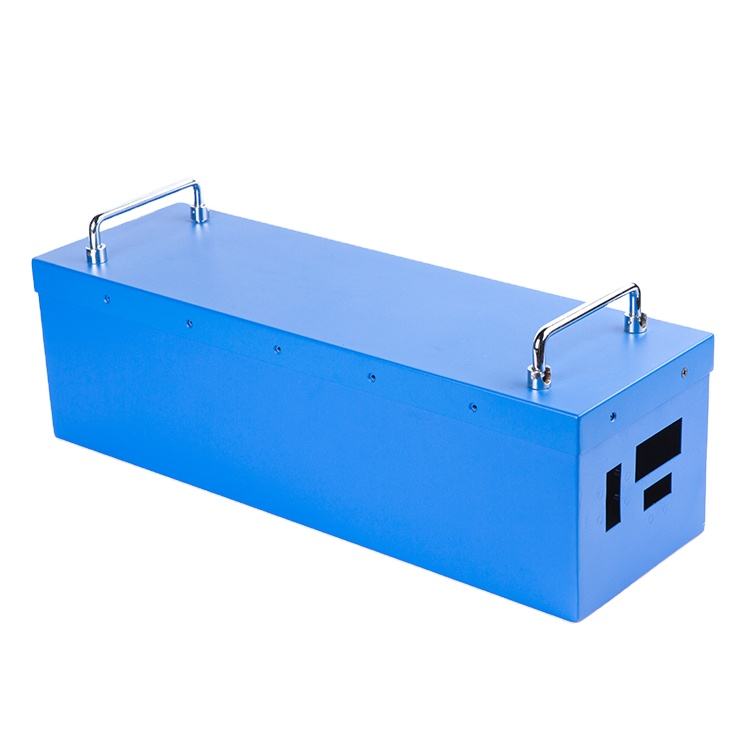

Product Details
Product Application
