51.2V 100Ah 72v 40ah lifepo4 lithium battery pack energy storage solar inverter 60v 20ah 48v 200ah lithium ion batteries
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Quick Details
| Place of Origin: | Guangdong, China | Brand Name: | LINKAGE |
| Model Number: | LKG-100-S2-2 | Battery Type: | LiFePO4, LiFePO4 |
| Size: | 530*440*190mm(±2mm) | Weight: | 55KG |
| Specification: | 51.2V 100Ah | Energy: | 6.144KWh |
| Cycles: | >2000 times(80%DOD) | Installation Method: | Foldable Type |
| Combination: | 1P16S | Features: | Long Service Life/Easy Operation / Low noise |
| Application: | Garden Tools, UPS Systems,Industrial and Medical Equipment etc |
Supply Ability
| Supply Ability | 2000 Piece/Pieces per Month |
Packaging & Delivery
| Picture Example: |
Product Detail
Product Paramenters
Battery Cell Parameters | |
Battery Types And Materials | LiFePO4 |
Rated Voltage/Capacity | 3.2V/100Ah |
Single Battery Voltage Range | 2.5V～3.65V |
Single Battery Weight | 2.8Kg |
The Battery Internal Resistance | ≤ 0.5mΩ |
Battery Pack Parameters | |
Product Model | LKG-100-S2 |
Rated Voltage | 51.2V |
Rated Capacity | 100Ah |
Total Power | 6.144KWh |
Weight Around | 55KG |
Color | White |
Combination | 1P16S |
Insulation Resistance Test Value | ≤60mΩ |
Operating Temperature | Charging 0 ~ 45℃ Discharging -10 ~ 50℃ |
Cycle Life | >2000 times(80%DOD) |
Warranty | 18 Months |
Standard Charging Current | 0.5C |
Quick Charging Curren | 1.0C |
Standard Discharge Current | 1.0C |
Maximum Continuous Discharge Current | 2.0C |
Battery Pack Size | 530*440*190mm(±2mm) |
Installation Method | Foldable Type |
OEM/ODM | Accepatable |
Applications | Solar Panels,Wind Power System,UPS, Backup Power,Outdoor Microstation,Home Energy Storage, Industrial Energy Storage,Emergency Light,RV. |

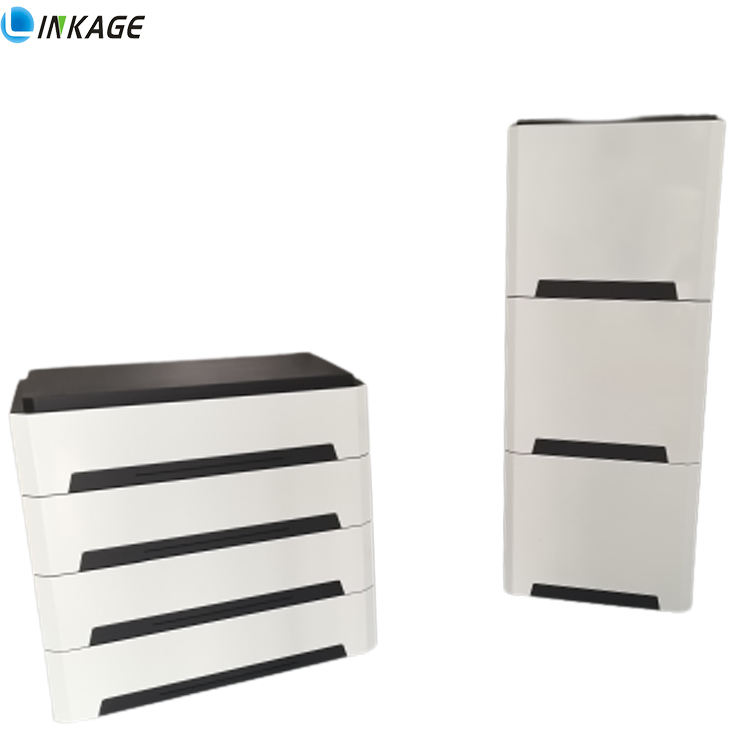

Products Display
