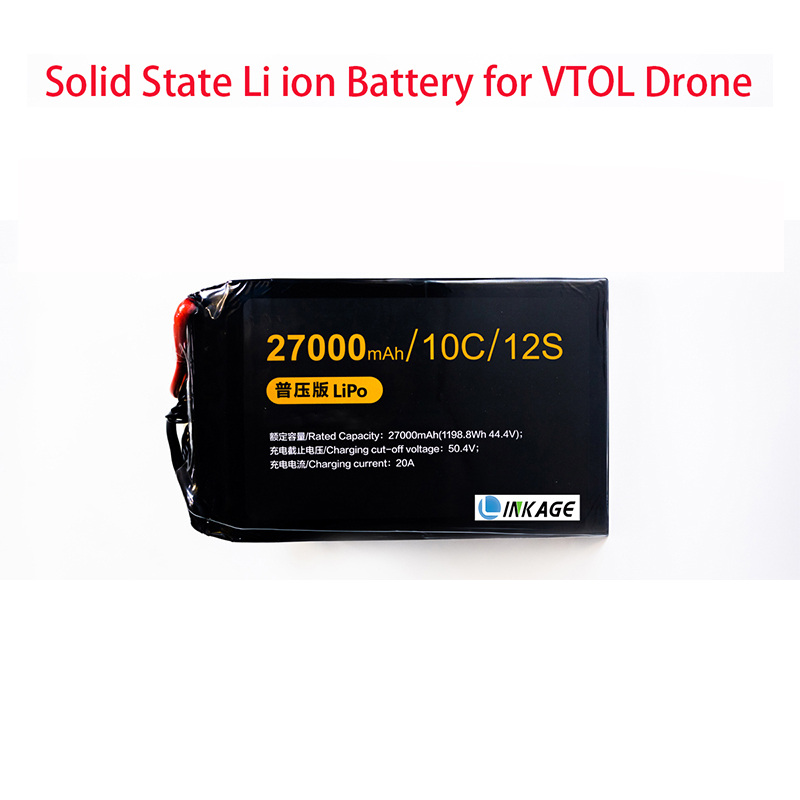

Solid State Li ion Batteries 12S 27Ah for VTOL Drone
|
Specification |
The specific parameters |
|
Nominal voltage（V ） |
44.4V |
|
Working voltage（V ） |
33.6~50.4 |
|
Capacity（mAh） |
27000mAh |
|
Size（mm,max） |
214*129*92 |
|
Weight（kg, max） |
4700 grams |
|
Energy density( Wh/kg ) |
255 |
|
Maximum continuous charging current（A） |
54 |
|
Maximum continuous discharge current（A） |
135 |
|
Charging Operating Temperature（℃） |
0~45 |
|
Discharge operating temperature（℃） |
-20~55 |
|
Cycle life（cycles@0.5C） |
800 |
12S 44.4 volts
Super High Energy Density
Much Higher Safety than normal LIPO and Li Ion
5 c grade for continuous discharging
Lifetime warranty
2C Quick charging capacity
waterproof
Built with 100% fresh batteries
Engineering drawings are available upon request
Made of high-grade silicone sheath line. The wire gauge is determined by plug selection.
We added connectors and JST-XH balance connectors

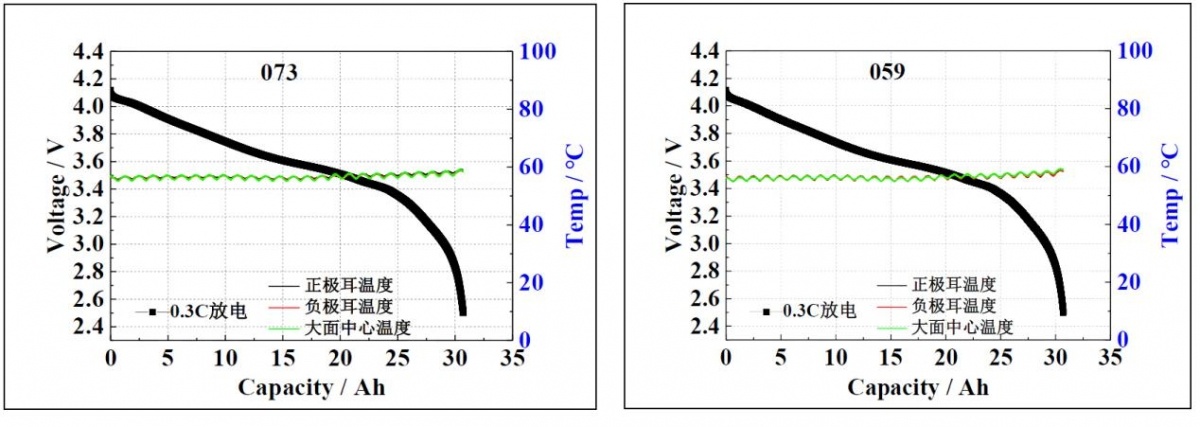

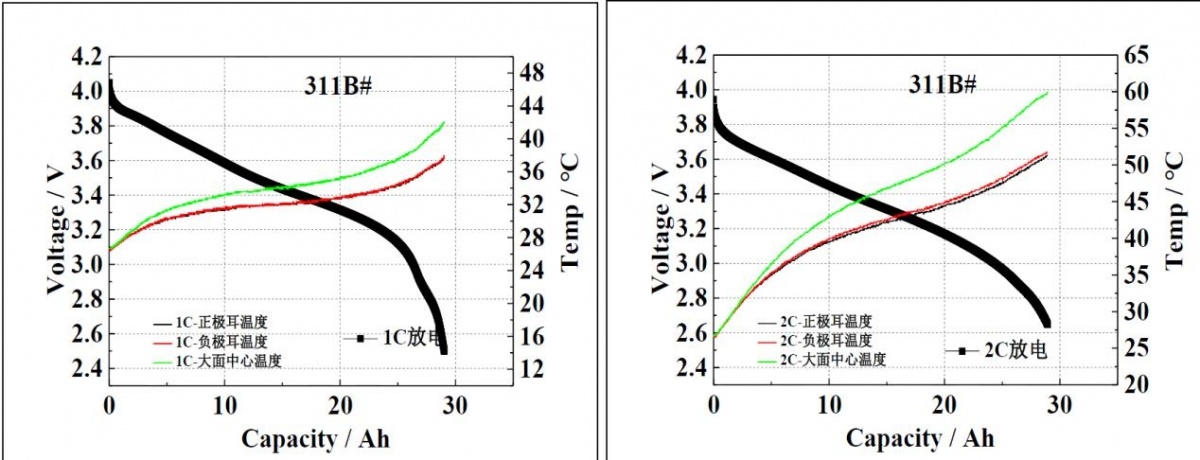

Battery Discharging Curve

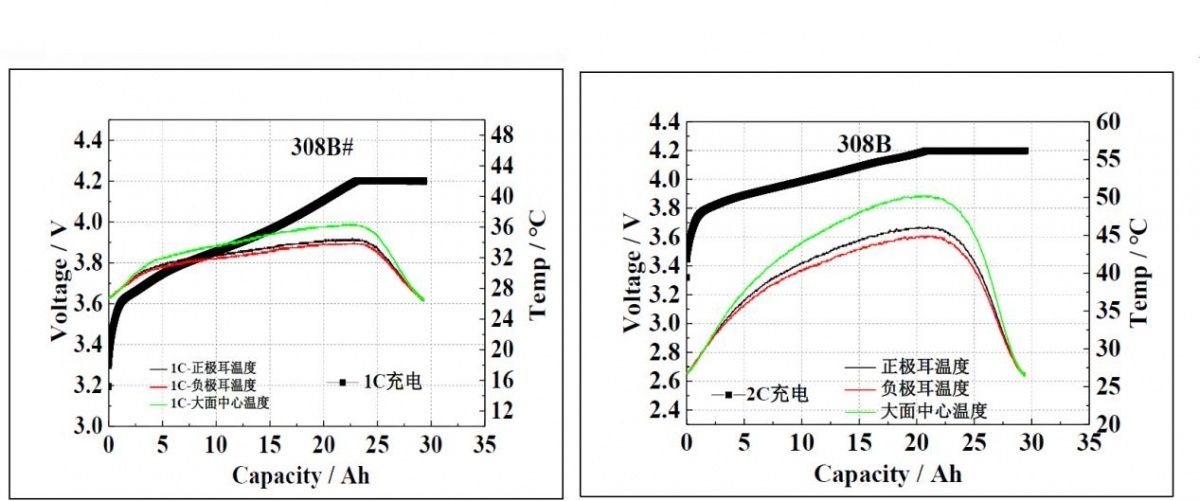

Battery Charge Curve

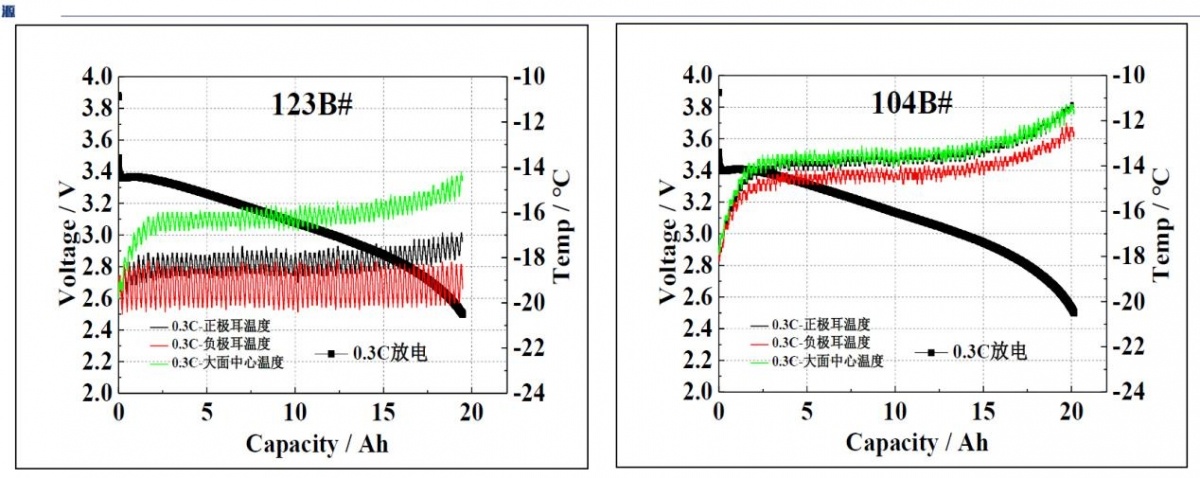

Battery Low Temperature Discharging Curve
55℃ High Temperature Discharging Performance
If you want to know more details for the Solid State Drone Batteries you can check for this:
We can supply any connector and wire gauge you like for balance tap and main connector. The battery can also be used as a “smart battery” with a built-in BMS and a hard case. We can also supply batteries of any voltage or capacity you need, as they are assembled and ordered in the United States. Custom configurations are available upon request. Contact us via live help, email info@linkagepower.com or by phone at +86 15919976170 with your specific requirements.
